Solar Water Pumping
for Remote Applications

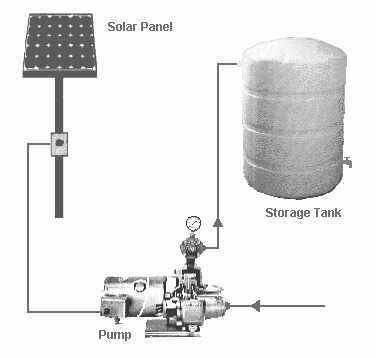

Non-Submersible Surface Pump Well System
Systems range from 30 meters (98 feet) in vertical lift to 99,990 liters (27,000 gallons) per day.
These can be solar direct as shown below, or battery driven for the ultimate in water volume control.
U.S. Gallons Per Day (GPD) and Maximum
Gallons Per Minute (MGPM)
Based on Standard Soler Day of 6 KWH/Sq. M.
How to use the chart:
- When the depth To Water and Total Lift (Head) is known, select the column closest to the lift required.
- Select the Gallons Per Day closest to the amount needed by moving down the selected lift column to find the best pump.
- Move horizontally to the left to find the quantity of 53-Watt Modules required.
Note: G.P.D. are based on a good Solar Day of 6 KWH/Sq. Meter (Sun Intensity). Your pumping output will vary depending on the actual modules used, tilt angle and seasonal weather conditions as found in your geographical area.
| |
Total Vertical Lift in Meters (Feet)
|
Quantity
53 Watt
PV Modules |
Aver.
Sys.
Watts |
60 Meters
(197 feet) |
70 Meters
(230 feet) |
80 Meters
(282 feet) |
90 Meters
(295 feet) |
100 Meters
(328 feet) |
120 Meters
(394 feet) |
130 Meters
(426 feet) |
|
12
4 Series x
3 Parallel
|
505 |
385 GPD
2.5 MGPM
(1) |
540 GPD
1.7 MGPM
(4) |
270 GPD
1.1 MGPM
(4) |
|
|
|
|
|
15
5 Series x
3 Parallel
|
630 |
1650 GPD
5.1 MGPM
(2) |
1035 GPD
3.0 MGPM
(4) |
710 GPD
2.2 MGPM
(4) |
480 GPD
1.7 MGPM
(4) |
|
|
|
|
16
4 Series x
4 Parallel
|
675 |
1975 GPD
5.7 MGPM
(2) |
1210 GPD
3.2 MGPM
(4) |
850 GPD
2.5 MGPM
(4) |
635 GPD
2.0 MGPM
(4) |
|
|
|
|
20
5 Series x
4 Parallel
|
840 |
3170 GPD
7.5 MGPM
(2) |
2240 GPD
6.2 MGPM
(2) |
1460 GPD
4.5 MGPM
(2) |
1150 GPD
3.2 MGPM
(4) |
880 GPD
2.6 MGPM
(4) |
380 GPD
1.4 MGPM
(4) |
|
|
25
5 Series x
5 Parallel
|
1050 |
4240 GPD
9.5 MGPM
(2) |
3390 GPD
8 MGPM
(2) |
2490 GPD
6.5 MGPM
(2) |
1760 GPD
5.0 MGPM
(2) |
1420 GPD
3.6 MGPM
(4) |
885 GPD
2.5 MGPM
(4) |
670 GPD
2.0 MGPM
(4) |
|
30
5 Series x
6 Parallel
|
1260 |
5720 GPD
15 MGPM
(3) |
4250 GPD
9.5 MGPM
(2) |
3410 GPD
8.3 MGPM
(2) |
2770 GPD
7.2 MGPM
(2) |
2110 GPD
6.0 MGPM
(2) |
1310 GPD
3.3 MGPM
(4) |
1100 GPD
3.0 MGPM
(4) |
Pump Models:
| 1 - 211020CJ |
2 - 211012DK |
3 - 211009CP |
4 - 211020DJ |
Conversion Factors:
| Meters to Feet - Multiply Meters by 3.28 |
| U.S. G.P.D. to Cubic Meters Per Day - Divide G.P.D. by 264.2 |
| Feet of Lift to PSIG - Divide feet by 2.31 |
Notes:
- Aqua Sun products do not process salt, saline, or sea water.
- Aqua Sun International is a member of the AMERICAN SOLAR ENERGY SOCIETY (ASES).
- The Ultraviolet light/water purification components carry a certificate of analysis, and the manufacture is a member of the Water Quality Association.
- When using the Solar Panel for power, water purification production is based solely on the daily amount of solar exposure.
- Aqua Sun International reserves the right to redesign or modify its product line without incurring further liability.
- Specifications are subject to change without notice.
- Custom Systems Engineered and Designed upon request.
- Photo shown may not be the actual model listed, but is used to indicate size and design characteristics.
|
