Model PWP-V
DC Powered Water Purification System
The Aqua Sun Model PWP-V is a self-contained, DC powered, water purification system designed for portability, ease of use, and durability. Using the best filtration technology available it produces safe drinking water from most fresh water sources such as rivers, ponds, wells, and lakes. It can be unpacked and operational in less than one minute and can produce 60 gallons (240 liters) per hour. The Model PWP-V operates from a 12-Volt DC power source and requires no chemical additives.
 The purification process starts with a sediment filter to clean the water and remove any suspended debris. The water is then sent through a 0.5 micron carbon block filter. This filter cartridge is an excellent water "polishing" filter. It is capable of removing
Giardia Lamblia, Cyst, Cryptosporidium, bad taste, odors, color, chlorine, THMs (trihalalomethanes), certain VOCs (volatile organic compounds), pesticides and many other harmful chemical contaminates. The filtered, "polished" water is then channeled past a ultraviolet light. The ultraviolet light kills bacteria and viruses that can cause diseases such as Typhoid Fever, Dysentery, Cholera, Infectious Jaundice, Hepatitis, Influenza, and Enteric Fever. This process can kill these and many other micro-organisms to a 99.9% kill rate. When this combination of filtration and UV disinfection is used together, clean, safe drinking water can be produced from unpotable water. |
The Model PWP-V operates on 12 volts DC. Power can be obtained from many sources, such as a vehicle battery or DC generator. A cigarette lighter plug and battery cable connectors are provided. When supplied with continuos DC power the system can produce safe, clean water at 60 gallons (240 liters) per hour for extended periods of time.
The system is housed in a durable, space age, lightweight structural plastic carrying case. It is water and air tight for maximum protection of the internal parts. This briefcase style case meets and exceeds the highest standards for industrial, airline, military and commercial applications. It is portable enough to be carried anywhere in the world. It is approved for air shipments inside and outside the continental United States.
PERFORMANCE SPECIFICATIONS
| Rate of water production |
60 gallons/240 Liters per hour |
| Strainer |
Particle |
| Pre-filter |
Sediment - 5.0 micron |
| Post, filter |
Carbon Block 0.5 micron |
| Ultraviolet Light |
16,000 MW seconds per cm sq. |
| Pump |
1 GPM, Self Priming |
| Inlet untreated water line |
3/8 x 4' flexible tubing |
| Outlet treated water line |
3/8 x 4' flexible tubing |
| 12 Volt extension cord length |
20 feet |
| Plug adapter |
Cigarette Lighter Plug/Cable Clip On |
| Weight |
20 LBS |
| Height |
9" / 228 mm |
| Length |
20" / 1508 mm |
| Width |
17" / 431 mm |
| Carrying Case |
Durable lightweight structural plastic |
| Options |
A Heavy Metal Lead/Mercury Reduction and Carbon Block Filter can be used in place of the polishing Carbon Block Filter with an approximate life of 1000 gallons |
Notes:
- Aqua Sun International is a member of the AMERICAN SOLAR ENERGY SOCIETY (ASES).
- The Ultraviolet light/water purification components carry a certificate of analysis, and the manufacture is a member of the Water Quality Association.
- When using the Solar Panel for power, water purification production is based solely on the daily amount of solar exposure.
- Aqua Sun International reserves the right to redesign or modify its product line without incurring further liability.
- Specifications are subject to change without notice.
- Custom Systems Engineered and Designed upon request.

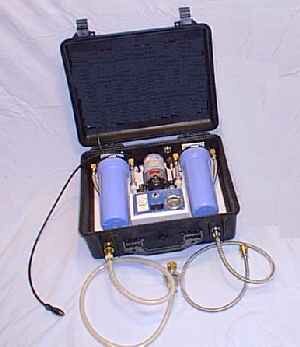

- Photo shown may not be the actual model listed, but is used to indicate size and design characteristics.
|
