500 gallons / 1,850 liters per day

Filtration and Ultraviolet Light Disinfection

Stationary Solar Powered Water Purification System for Remote Applications using water from Rivers and Lakes WITHOUT water pressure.

Click on the "Download PDF" button to see a high resolution copy of this system!

Cleaner and Safer Drinking Water from most any From Bore Holes or Tube Wells, Rivers, Lakes and Water Tanks or Fresh Water Sources

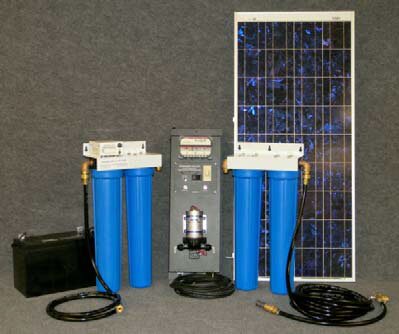

Aqua Sun International manufactures the Villager – S3 - 4 System. This system is a wall mount system and is completely automatic that can take its water from a river, lake, well, or holding tank systems and produce approx 3 gallons / 3.7 liters per minute x 60 minutes = 180 gallons / 666 liters per hour x 3 hours = 540 gallons / 1,998 liters in a 3 hour period. This system will use a solar / battery powered 12-volt system to supply its electrical power needs. Whenever the sun is shining, the solar system will always be recharging the battery, even when the water treatment system is working. This system comes as a turn-key package. It is designed for easy installation as all of the wiring is pre wired and plumbing is pre-plumbed and all that needs to be done is hang the water treatment system on the wall in a convenient location. Plumbing in and out of the water treatment system is easy with 25 foot inlet female hose and 7 foot outlet male hose pre-plumbed into system. The Controller Panel will need to be located within 2 ft of the Water Treatment System preferably in between the 2 systems. The Battery Wire is prewired and will need to have the Positive (+) and Negative (-) wires connected to the battery. Mount the solar panel in a sunny location and within 25 feet of the system. Attach the solar wires to the panel that are already prewired into the control box. Install Filters and UV Lamp and the system is ready for operation. It is simple and easy to install the Villager S3-4 Solar / Battery Powered Water Purification System.


 This Villager S3-4 / Solar Battery / 12-volt Powered Water Purification Systems pulls the water from the source and through a Washable / Reusable Sediment Filter which removes large particles, sticks and leaves and then through Sediment Filter to remove the sediment. The water is then pushed through a Carbon Block Polishing Filter that has the capabilities of removing Giardia and Cryptosporidium Cysts, Entamoeba and Toxoplasma Cysts, Schistosomiasis, Herbicides, Pesticides, Trihalomethanes (THMs), certain Volatile Organic Chemicals (VOCs), Chlorine and Chlorine By-Products, Sediment, Bad Taste, Odors, Color, Smell, and many other Harmful Chemicals and Contaminants down to a 0.5 micron. The polished filtered water is then channeled past an Ultraviolet Light Disinfecting Process that has the ability to kill Bacteria, Viruses, Typhoid Fever, Coliform, Dysentery, Cholera, Infectious Jaundice, Hepatitis and Influenza Virus, E-coli, Enteric Fever and many other unwanted microorganisms to a 99.999% purity.



We can ship our systems to almost anywhere in the world


Shipping sizes and weights for this system.


Without Replacement Parts Kit:


2 boxes  36”x 16” x 13 @ 30 lbs.


1 box  30” x 14” x 12” @ 20 lbs.


1 box  3” x 50” x 24” @ 25 lbs.


With Replacement Parts Kit; add 1 box  26” x 13” x 8” long  @ 40 Lbs


This does not include battery due to weight and shipping hassles, Purchase in Country. We can send requirement specifications.


We ship individually, pallets or ocean containers.


This System is approved for air shipments inside and outside the continental United States.


All water contact components carry a NSF Approval Rating and the ultraviolet light carries a Certificate of Analysis.

This system comes in 2 different models: With and without water pressure.


Villager S3-4:    This system is for areas WITHOUT water pressure and not electrical power.


Villager S8-4:  Same system as above but for locations WITH a minimum of 20-30 PSI water pressure. Maximum 75 psi.


We can design for your needs.


The filter and UV light manufacturers are members of the Water Quality Association.






Aqua Sun International located in Minden, Nevada U.S.A. engineered and designed the Villager line of solar water purification systems starting back in 1993 and is the original / only manufacturer of this system.


All designs, product literature and names are Copyrighted 1998 – 2010 and Trademarked.



Filtration Components:




Removes river and lake water particles such as leaves, twigs, sediment and protects the sediment pre-filter from premature clogging. This filter is easily washed and cleaned when clogged.


APPROXIMATE FILTER LIFE EXPECTANCY depends on how dirty incoming water is or 1 year maximum.






Removes ground water sediment and protects the carbon block filter from premature clogging. Not washable.


APPROXIMATE FILTER LIFE EXPECTANCY depends on how dirty incoming water is or 1 year maximum.




 0.5 micron CARBON BLOCK


Removes and reduces giardia lamblia and cryptosporidium cysts, volatile organic chemicals "VOC's" pesticides and herbicides, benzene, sediment, color, bad taste and odors such as hydrogen sulfide "rotten egg smell" and many other microorganisms down to a 0.5 micron. This Carbon Block Filter polishes the water crystal clear for refreshing good tasting water.


APPROXIMATE FILTER LIFE EXPECTANCY 45,000 gallons / 165,000 liters or one year of clear incoming water.






Clean, safe and natural UV light rays have the ability to kill the bacteria and virus to 99.999 % purity without any harmful side effects much like chemical agents normally added to drinking water. The ultraviolet range is ideal for killing Micro-organisms such as E-coli, Coli form, Cholera, Legionnaires Disease, Hepatitis Virus, Typhoid Fever, Dysentery, Infectious Jaundice, Influenza, Enteric Fever and many other unwanted Microorganisms.


APPROXIMATE UV BULB LIFE EXPECTANCY 9000 hours, or approx 2 Years.





Turn-Key Systems, Built-in Flexibility


Easy Set-Up, Instant Water Production


3 gallons (11 liters) per minute approx.


180 gallons (666 liters) per hour approx.


500 gallons  (1,850 liters) per day approx.


Water Source from Rivers, Lakes or Water Tanks


Pre–Plumbing and Pre-Wiring installed / connected


0.5 micron Carbon Block Filtration


Ultraviolet Light (UV) Water Disinfection System


12- volt Photovoltaic Solar Panel  /  Battery Powered


Control Panel:  16" tall x 9" wide x 7 deep. 15 lbs.


Solar Panel:  47" L x 21" W x 2" D x 20 lbs.


Battery: 12 volt - 13"L x 7"W x 10"D x 75 lbs.


Battery / System Running Time =  3 hrs max.


Battery Charge Storage Life = 1+ Year


10 ft Inlet and Outlet flexible hose connections


Rated Water Pressure:   20 PSI minimum / 65 PSI maximum.


Ultraviolet Lamp Output: 16,000 microwatt seconds per centimeter squared and carries a Certificate of Analysis.


NSF and FDA APPROVED on filtration and water contact components.



Standard Features:


Size: Filters Housings and Mounting Bracket,  25" long x 11 wide x 6" deep,  2 pcs


Size: Control Panel,   28" long x 9" wide x 7" deep, 15 Lbs.


Output Watts:


    Ultraviolet Light only; 22 Watts / 1.89 amps per hour

    Self Priming Water Pump: 5 amps max per hour depending on head


Weight Empty:   approx. 55 lbs. Shipping Weight Not including Battery. Battery 75 lbs.


Inlet Connection: ¾ “Female Standard Hose Threaded Port / Swivel. 10 feet long


Outlet Connections: ¾ “Male Standard Hose Threaded Ports. 10 feet long


Rated Water Pressure:   20 PSI minimum / 65 PSI maximum


Ultraviolet Lamp Output: 16,000 microwatt seconds per centimeter squared and carries a Certificate of Analysis


Hoses, electrical cords and all misc. fittings included with system


NSF and FDA APPROVED on filtration and water contact components


Filter and UV Replacement Parts Filter Kits at a discounted available



Options (extra fees apply):


U.S. Voltage to 12 volt: 120 volt to 12 volt electrical power converter.


International Voltage to 12 volt:   220 volt 50 Hz. Uses a 220 volt 50 Hz to a 120 volt Power Step Down Transformer then the above 120 volt to 12 volt converter.


Lamp Out Circuit:  Different UV System with Solenoid Valve,  will not operate all water flow if UV light is not ON.
