VILLAGER® S1

100 gallons / 370 liters per hour

1 gallon per minute x 60 minutes = 60 gallons / 222 liters

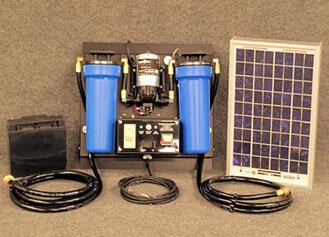

Aqua Sun engineered and designed the Villager® – S1 System in 1994 and started manufacturing the system in 1995. Aqua Sun manufactures the Villager S1, Stationary, Wall Mount Solar Battery 12-volt Powered Water Purification Systems for Remote Applications. This system has the capabilities of producing cleaner and safer drinking water from almost any creek, stream, pond, well, lake or most any fresh water source at a volume production rate of 1 gallon (3.7 liters) per minute where water purification and electrical power are impractical or unattainable. The daily water production from the solar battery mode is up to 100+ gallons (370+ liters) per day. This System does not require any outside electrical power; nor is there a need for chemical additives.



These Stationary, Wall Mount 12 volt Powered Water Purification Systems pull the water from the source and

through a 5.0 micron Sediment Pre-Filter. The water is then pushed through a Carbon Block Polishing Filter

that has the capabilities of removing Giardia and Cryptosporidium Cysts, Entamoeba and Toxoplasma Cysts,

Herbicides, Pesticides, Trihalomethanes (THMs), certain Volatile Organic Chemicals (VOCs), Chlorine and

Chlorine By-Products, Sediment, Bad Taste, Odors, Color, Smell, and many other Harmful Chemicals and

Contaminants down to a 0.5 micron. The polished filtered water is then channeled past an Ultraviolet Light

Disinfecting Process that has the ability to kill Bacteria, Viruses, Typhoid Fever, Coliform, Dysentery,

Cholera, Infectious Jaundice, Hepatitis and Influenza Virus, E-coli, Enteric Fever and many other unwanted

microorganisms to a 99.999% purity.



Life expectancy of the Carbon Block Filter with clean incoming water is 10,000 gallons or 1 year.

The Ultraviolet Light life expectancy under normal usage is 12 to 18 months.

The SWP-S1 system is 16" wide x 18" long x 7" deep and has an approximate weight of 25 lbs.

This System is mounted on a powder coated aluminum frame style design.

This system comes in 3 different powered models:

Villager S1 production rate is 1 gallon (3.7 liters) per minute, up to 100 gallons (370 liters) per day.

Villager S1E: Larger solar panels & battery powered operating capabilities with 12-volt electrical

outlets and a bright light. We can design for your needs.

This System is approved for air shipments inside and outside the continental United States.

All water contact components carry a NSF Approval Rating and the ultraviolet light carries a Certificate of Analysis.

The filter and UV light manufacturers are members of the Water Quality Association.





Filtration Components:



 SEDIMENT FILTER



Removes ground water sediment and protects the carbon block filter from premature clogging. Not washable.

APPROXIMATE FILTER LIFE EXPECTANCY depends on how dirty incoming water is or 1 year maximum.



 0.5 micron CARBON BLOCK



Removes and reduces giardia lamblia and cryptosporidium cysts, volatile organic chemicals "VOC's" pesticides and herbicides, benzene, sediment, color, bad taste and odors such as hydrogen sulfide "rotten egg smell" and many other microorganisms down to a 0.5 micron. This Carbon Block Filter polishes the water crystal clear for refreshing good tasting water.

APPROXIMATE FILTER LIFE EXPECTANCY 10,000 gallons / 37,000 liters or one year of clear incoming water.



 ULTRAVIOLET DISINFECTING LAMP



Clean, safe and natural UV light rays have the ability to kill the bacteria and virus to 99.999 % purity without any harmful side effects much like chemical agents normally added to drinking water. The ultraviolet range is ideal for killing Micro-organisms such as E-coli, Coli form, Cholera, Legionnaires Disease, Hepatitis Virus, Typhoid Fever, Dysentery, Infectious Jaundice, Influenza, Enteric Fever and many other unwanted Microorganisms.

APPROXIMATE UV BULB LIFE EXPECTANCY 9000 hours, or approx 2 Years.





Specifications:



Turn-Key Systems, Built-in Flexibility

Easy Set-Up, Instant Water Production

1 gallon (3.7 liters) per minute approx.

60 gallons (220 liters) per hour approx.

100 gallons  (370 liters) max day.

Water Source from Rivers, Lakes or Water Tanks

Pre–Plumbing and Pre-Wiring installed / connected

Ultraviolet Light (UV) Water Disinfection System

System Size  16” wide x 18" long x 6" deep @ 30 Lbs.

Solar Panel:  17" long x 14" wide x 2” thick

Battery / System Running Time =  100 minutes.

10 ft Inlet and Outlet flexible hose connections

Rated Water Pressure: 20 PSI minimum / 65 PSI maximum.

Ultraviolet Lamp Output: 16,000 microwatt seconds per centimeter squared and carries a Certificate of Analysis.

NSF and FDA APPROVED on filtration and water contact components.





Standard Features:



Size: System Dimensions;  16” wide x 18" long x 6" deep



Output Watts:

    Ultraviolet Light only; 10 Watts / 0.84 amps per hour

    Self Priming Water Pump; 1.8 amps max per hour depending on head

Weight Empty:   approx. 30 lbs.

Inlet Connection: ¾ “Female Standard Hose Threaded Port / Swivel. 10 feet long

Outlet Connections: ¾ “Male Standard Hose Threaded Ports. 7 feet long

Rated Water Pressure:   20 PSI minimum / 65 PSI maximum

Ultraviolet Lamp Output: 16,000 microwatt seconds per centimeter squared and carries a Certificate of Analysis

Hoses, electrical cords and all misc. fittings included with system

NSF and FDA APPROVED on filtration and water contact components

Filter and UV Replacement Parts Filter Kits at a discounted available

During Emergency Responses, the Villager provides fast, flexible access to emergency water

The Villager S1 supports Emergency Relief Camps being pre-positioned and then brought out quickly for hurricanes, tornadoes, ice storms, earthquakes, etc

The Villager S1 provides fresh water for personal showering, hydration, decontamination, fire personnel re-hab, medical needs, evacuation and transport support

Easily Adaptable to ice machines, kitchen facilities and food preparation, laundry support, dish washing machines, etc and supports shelters housing several hundred people





Options (extra fees apply):



U.S. Voltage to 12 volt; 120 volt to 12 volt electrical power converter.



International Voltage to 12 volt;   220 volt 50 Hz. Uses a 220 volt 50 Hz to a 120 volt Power Step Down Transformer then the above 120 volt to 12 volt converter.



Lamp Out Circuit;  Different UV System with Solenoid Valve,  will not operate all water flow if UV light is not ON.
